S842 is an exceedingly compact, high quality, robust and controllable range of LED spotlights that can be supplied with your choice of fixing and the very latest in LED technology. S842 spotlights have been a popular selection for retail design specifiers, jewellers, and museums throughout the UK and US and have been proven to be an extremely effective display lighting solution.
Spectrum Miniature S842 LED luminaires are offered with warm, cool or neutral white integral high quality and reliable LEDs in a choice of ten different finishes, please choose from the options below.
Spectrum HI LED Lumen Output:
-
3000K - 230lm (CRI90>)
-
4000K - 250lm (CRI80>)
-
5000K - 274lm (CRI80>)
S842 spotlights operate from 500mA constant current LED drivers, we have a number of dimming options available if required i.e. 1-10V, Trailing Edge and now we offer Bluetooth control via your IOS or Android tablet or smart phone, please see the recommended drivers at the bottom of each of the product pages.

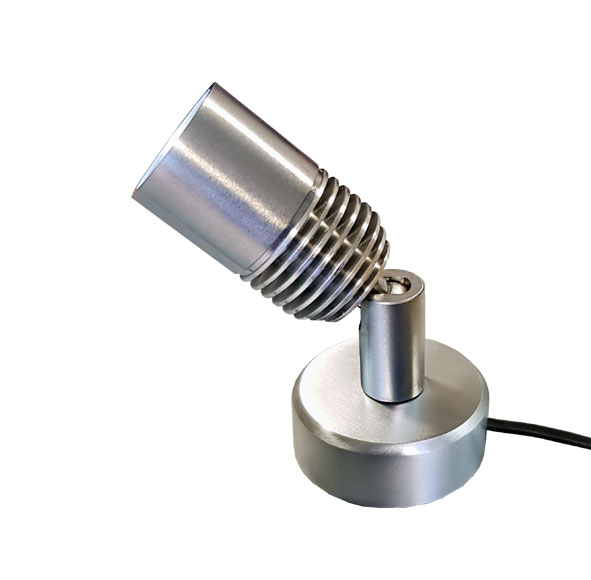

The S842 luminaire is supplied complete with a weighted freestanding base that can be positioned on table tops to direct lighting upwards onto display items. This fitting stands only 84mm high when pointing directly upwards or 46mm when pointing at 90 degrees and is perfect for applications that require miniature discreet lighting.
|
 Adjustment - 90 Degrees Beam Angle - 24 Degrees Cap/Lampholder - Non replaceable LED Cut Out - Freestanding Diameter - Base = 40mm Dimmable - 1-10V | Triac | Bluetooth
 Finish - ** OPTIONS AVAILABLE ** Fixing - Freestanding Height - 46mm - 84mm IP Rating - IP20 Lamp - Integral LED LED Colour - ** OPTIONS AVAILABLE **
 Material - Aluminium/Brass QTY per pack - 1 Rotation - 350 Degrees Voltage - 500mA Constant Current Wattage - 2W
|
Installation/Additional Images (click to enlarge) |
1. SELECT COLOUR TEMPERATURE (CCT):[click to expand]
The light produced by candles is very warm (basically yellow/orange) whereas daylight at noon is very cool. The colour or warmth of white light is ranked on a scale, the Kelvin scale, the warmer the colour the lower the colour temperature. Candles being around 2000 degrees Kelvin (K) while daylight typically 5500 – 6500K, please select your choice of colour temperature from the list below.
* COLOURS SHOWN ARE REPRESENTATIVE ONLY *
2. SELECT BEAM ANGLE REQUIRED:[click to expand]
When selecting beam angle, it’s important to note how many different fixtures you have to work with, as well as the distance between these light sources. Think about whether you want overlapping beams to create general lighting and ambience, or whether you’d prefer isolated pockets of light. This is especially important if you are working with overhead recessed lighting.
3. SELECT FINISH:[click to expand]
To make your product specification please make a selection from the component list provided:
COLOURS SHOWN ARE EXAMPLES ONLY AND MAY NOT BE AN EXACT MATCH FOR FINISHED PRODUCTS. TO VIEW RAL COLOUR CHART CLICK HERE
* COLOURS SHOWN ARE REPRESENTATIVE ONLY *
4. NUMBER OF LUMINAIRES REQUIRED PER SET * I.E. WIRED TO ONE POWER SUPPLY *[click to expand]
Please select how many fittings you would like to operate per set (from a single power supply) with Plug & Play Connections. If your requirement is not shown in the list please add a note to your quote request or contact one of our sales team on 0044 (0) 161 207 3355 or email sales@display-lighting.com
5. SELECT LED DRIVER / DIMMING OPTION:[click to expand]
Select from the Plug & Play options below, if your requirement is not shown in the list please add a note to your quote request or contact one of our sales team on 0044 (0) 161 207 3355 or email sales@display-lighting.com
Casambi Smartphone App required for Bluetooth control (available on IOS & Android)
|
