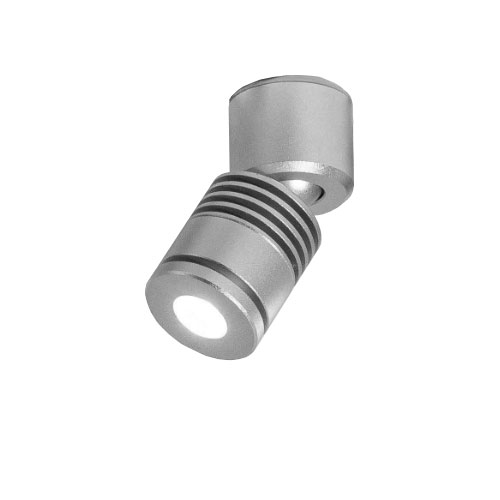

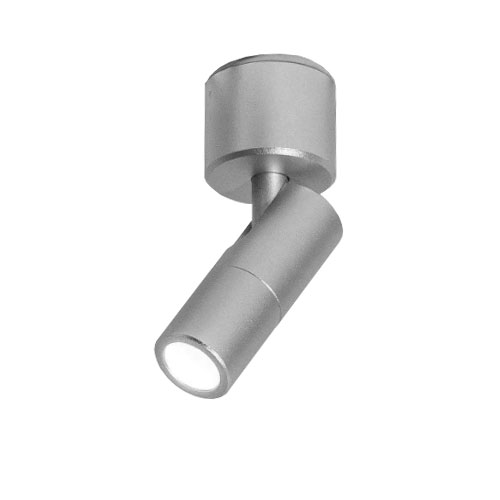

DL5010.NW.11 - DL5010 1W CRI90 Adjustable Spotlight (4000K) Silver
90 Degrees
20 Degrees
Non User Replaceable LED
14.5mm
Non Dimming
Silver
62mm
IP20
Non User Replaceable LED
4000K 60lm CRI90
Aluminium
1
350 Degrees
12VDC / 24VDC
1W
22mm
12V/24V Magtrack
Magtrack – Miniature LED Track System
Magtrack is a beautifully engineered 12V/24V miniature LED track system designed to deliver professional lighting performance in the smallest of spaces. Combining precision, versatility, and ease of installation, Magtrack is ideal for illuminating jewellery, collectibles, and high-value retail or museum displays.

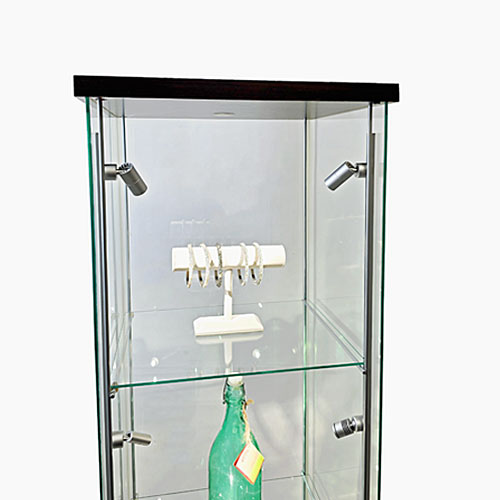

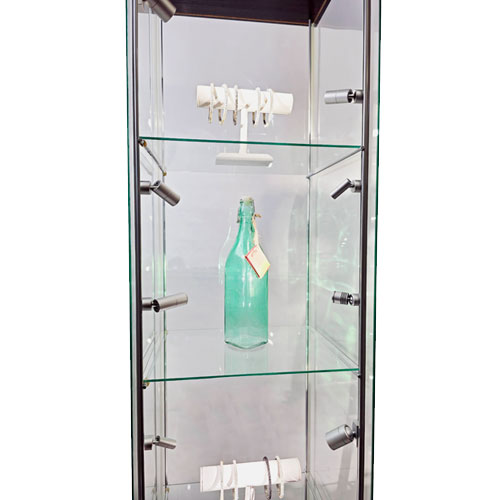

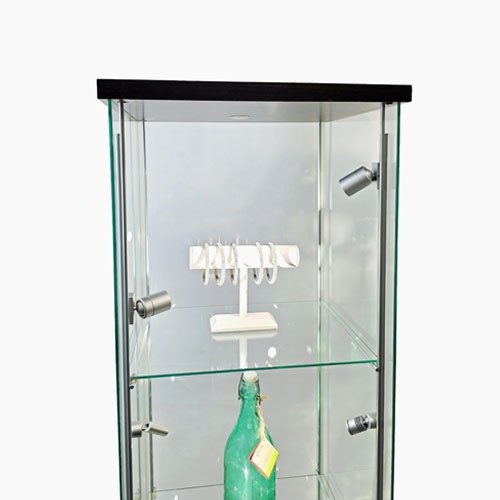

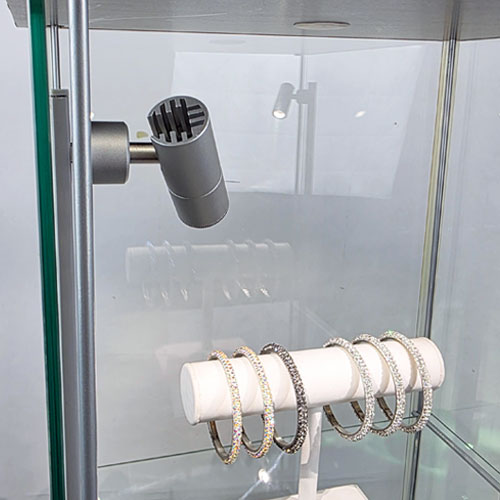

Perfectly suited for installation into tall glass display cases and cabinets, Magtrack offers a discreet, elegant lighting solution that enhances every detail without distracting from the display itself. The magnetic track design allows spotlights to be easily positioned and adjusted, giving you complete flexibility to highlight your products exactly as you wish.
Magtrack represents Display Lighting’s commitment to quality, innovation, and craftsmanship — providing compact, high-performance lighting that transforms any showcase into a professional display environment.
Magtrack & LED Spotlights are available in satin black or satin silver in the following models:
- DL5010 - 1W 4000K
- DL5011 - 2W 4000K
- DL6021 - 2W 4000K
- DL5012Z - 3W with Zoom Lens (10 - 40 Degrees) 3000K & 4000K
- DL6023 - 4W 4000K

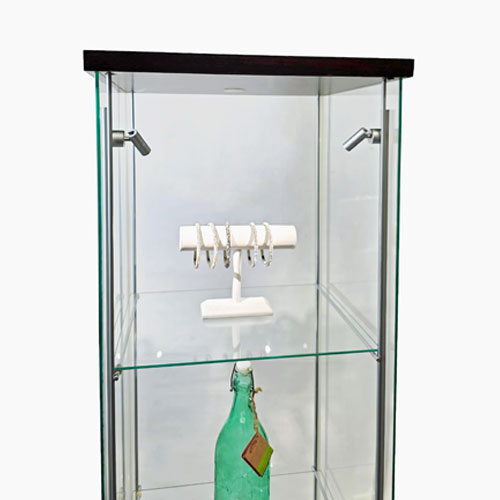

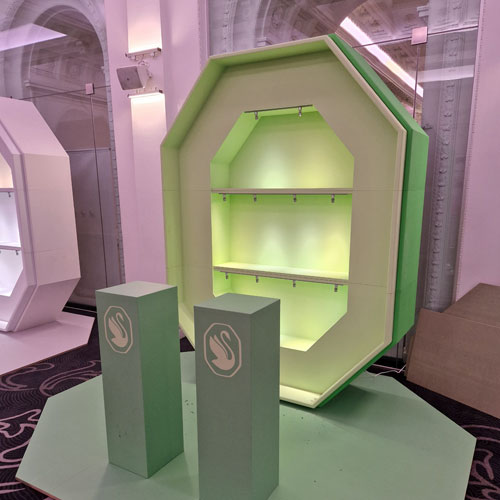

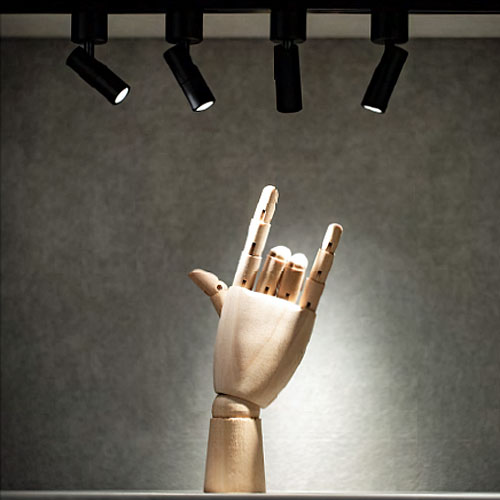

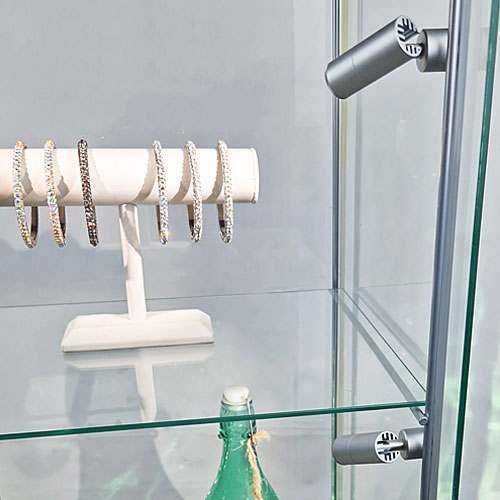

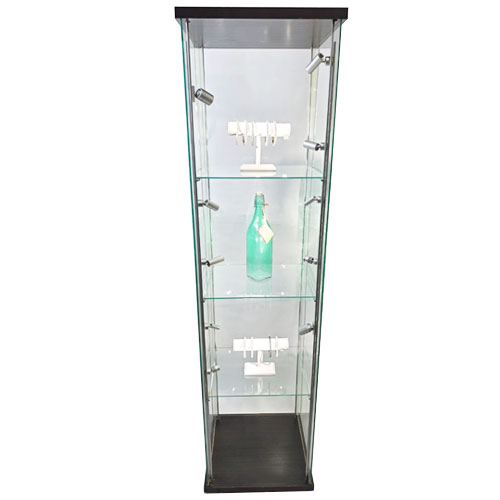

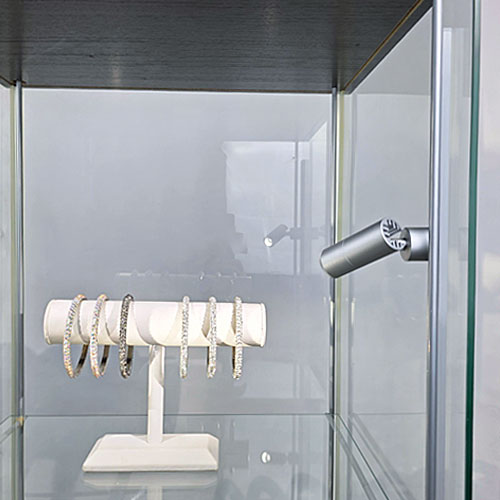

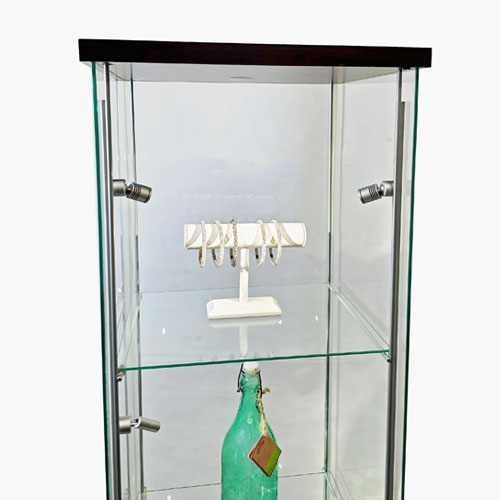

Installation/Additional Images (click to enlarge)

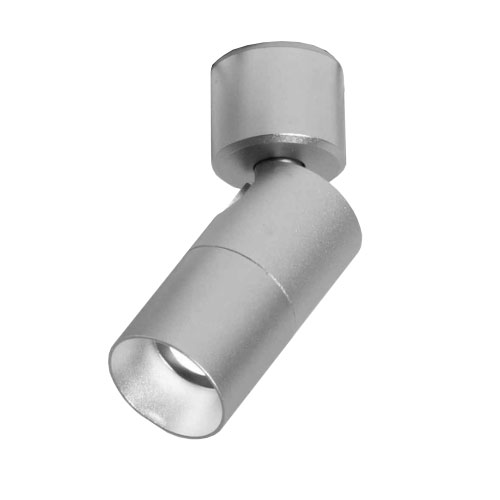

DL5011.NW.11 - DL5011 2W CRI90 Adjustable Spotlight (4000K) Silver
- 90 Degrees
- 20 Degrees
- Non User Replaceable LED
- 22mm
- Non Dimming
- Silver
- 69.5mm
- IP20
- Non User Replaceable LED
- 4000K 120lm CRI90 (60lm/W)
- Aluminium
- 1
- 350 Degrees
- 12VDC / 24VDC
- 2W
DL5012Z.NW.10 - DL5012Z 3W CRI90 Zoom Adjustable Spotlight (4000K) Black
- 90 Degrees

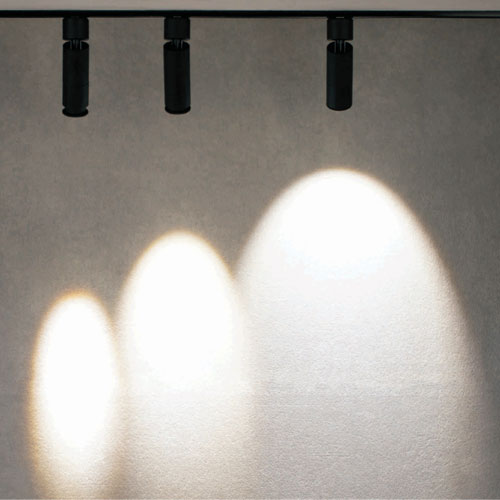

- 10 - 40 Degrees Zoom
- Non User Replaceable LED
- 22mm
- Non Dimming
- Black or Silver
- 83.5mm
- IP20
- Non User Replaceable LED
- 4000K 180lm CRI90 (60lm/W)
- Aluminium
- 1
- 350 Degrees
- 12VDC / 24VDC
- 3W
- 22mm

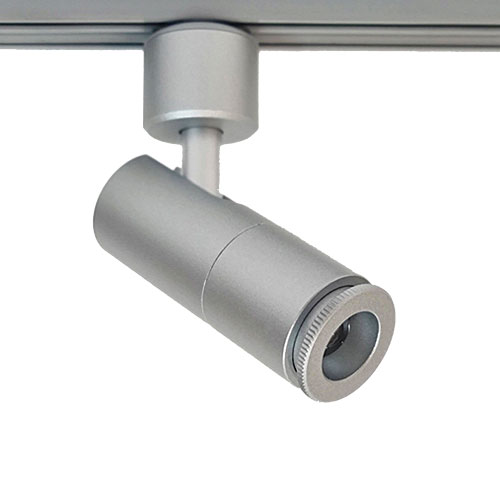

DL5012Z.NW.11 - DL5012Z 3W CRI90 Zoom Adjustable Spotlight (4000K) Silver
- 90 Degrees
- 10 - 40 Degrees Zoom
- Non User Replaceable LED
- 22mm
- Non Dimming
- Silver
- 83.5mm
- IP20
- Non User Replaceable LED
- 4000K 180lm CRI90 (60lm/W)
- Aluminium
- 1
- 350 Degrees
- 12VDC / 24VDC
- 3W
- 22mm

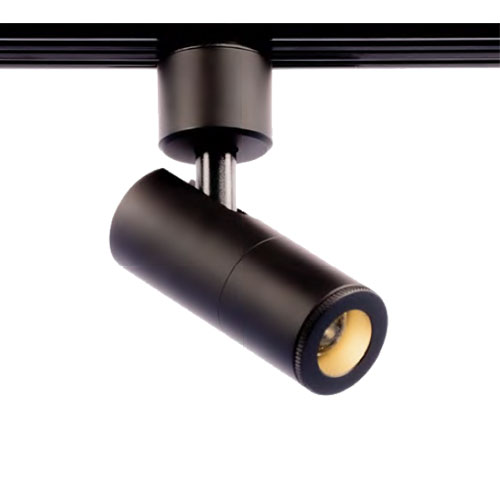

DL5012Z.WW.10 - DL5012Z 3W CRI90 Zoom Adjustable Spotlight (3000K) Black
- 90 Degrees
- 10 - 40 Degrees Zoom
- Non User Replaceable LED
- 22mm
- Non Dimming
- Black
- 83.5mm
- IP20
- Non User Replaceable LED
- 3000K 180lm CRI90 (60lm/W)
- Aluminium
- 1
- 350 Degrees
- 12VDC / 24VDC
- 3W
- 22mm
DL5012Z.WW.11 - DL5012Z 3W CRI90 Zoom Adjustable Spotlight (3000K) Silver
- 90 Degrees
- 10 - 40 Degrees Zoom
- Non User Replaceable LED
- 22mm
- Non Dimming
- Silver
- 83.5mm
- IP20
- Non User Replaceable LED
- 3000K 180lm CRI90 (60lm/W)
- Aluminium
- 1
- 350 Degrees
- 12VDC / 24VDC
- 3W
- 22mm

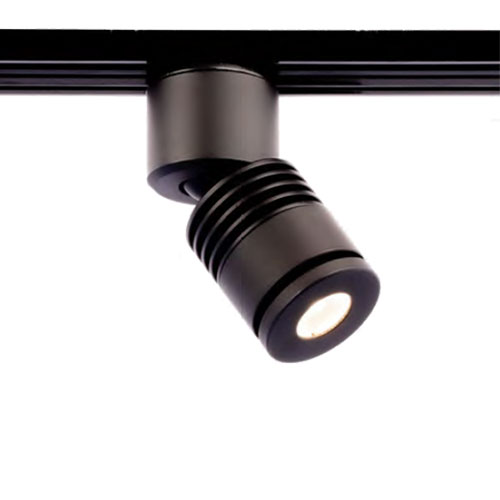

DL6021.NW.10 - DL6021 2W CRI90 Adjustable Spotlight (4000K) Black
- 40 Degrees
- 20 Degrees
- 22mm
- Non Dimming
- Black
- 52.4mm
- IP20
- Integral Non Replaceable LED
- 4000K 120lm CRI90
- Aluminium
- 1
- 12VDC / 24VDC
- 2W
DL6021.NW.11 - DL6021 2W CRI90 Adjustable Spotlight (4000K) Silver
- 40 Degrees
- 20 Degrees
- 22mm
- Non Dimming
- Silver
- 52.4mm
- IP20
- Integral Non Replaceable LED
- 4000K 120lm CRI90
- Aluminium
- 1
- 12VDC / 24VDC
- 2W
DL6023.NW.11 - DL6023 4W CRI90 Adjustable Spotlight (4000K) Silver
- 40 Degrees
- 40 Degrees
- Non User Replaceable LED
- 30mm
- Non Dimming
- Silver
- 60.5mm
- IP20
- Non User Replaceable LED
- 4000K 280lm CRI90
- Aluminium
- 1
- 350 Degrees
- 12VDC / 24VDC
- 4W
- 22mm
MAGTRACK-1A - MagTrack Pre-wired Plug & Play Kits
- 20 Degrees
- Non User Replaceable LED
Surface Mount- Silver
Screw Fix and/or VHB Tape- IP20
- Non User Replaceable LEDs
- 4000K
1000mm- Polycarbonate/Aluminium
- 1
- 12VDC / 24VDC
- 22mm
