LED SIGN Modules

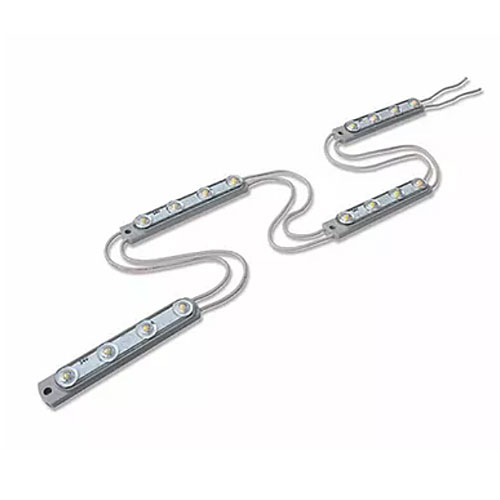

MiniMAX LED Modules                                     MiniMAX MS LED Modules

The remarkable LED system designed for small channel letters as shallow as 1.5 inches in depth delivers incredibly uniform light, installs easily and operates efficiently. The Tetra® miniMAX is now IP66 and UL wet rated which makes it more robust and reliable even under wet weather.

Working closely with sign builders and owners, we’ve refined our design to improve performance while decreasing the amount of product required, further reducing installation and material costs.

Powerful OptiLens™

Tetra® miniMAX features OptiLens™ a patented technology that captures otherwise wasted light and redirects it towards the illuminated surface with impressive uniformity. It optimizes each LED—which enables wider stroke spacing—reducing the amount of material needed per sign while helping protect the LED against moisture, humidity, damage and corrosion.

MiniMAX Wet Location Rated

Now there’s a miniMAX solution for wet locations where saturation with water or other liquids is likely. Integrating all the same performance features of miniMAX, the miniMax wet rated is IP66 and UL wet rated. It contains an added over molded design that protects against water ingress, dust and damage, and a special module top surface to eliminate water retention —no separate enclosure is required.

Can cut product required almost in half

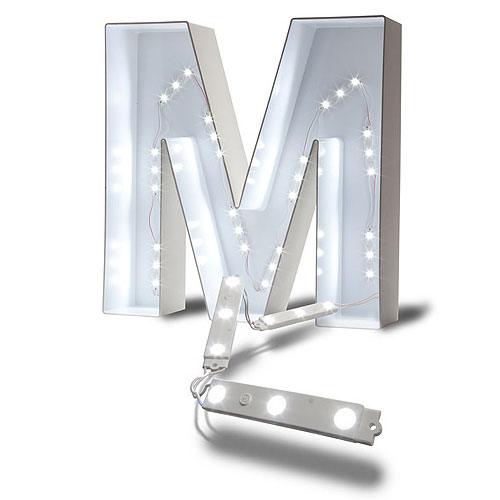

Many LED systems use about 13 LED modules in 2 rows to fill a capitol "T" channel letter that’s 2 feet high.

Use one row, not two.

Tetra® miniMAX stretches stroke spacing to an impressive 7 inches in a 3-inch depth channel while maintaining impressive light uniformity on the sign face. It protects your customers’ brand image while reducing product costs and saving you installation time.

Total Reliability

To ensure every Tetra® miniMAX installation will operate brilliantly for years, we perform the most extensive, stringent testing in the industry. Rather than relying solely on test data from LED suppliers, we test the LED, water and dust ingress protection, sub-system and complete system at our in-house and independent laboratories around the world. Validation of our designs, components, products and processes include high-temperature, high-humidity and accelerated life testing.

Read More

MINIMAX - MiniMAX LED Modules

  • 150 Degrees
  • No
  • White
  • Screw Fix
  • 9.4mm
  • IP66
  • Integrated LEDs
  • See options
  • 57.6mm
  • 170 Modules
  • See options
  • 12V DC
  • 0.32W
  • 18.3mm
View Details

MINIMAX-MS - MiniMAX MS LED Modules

  • 140 Degrees
  • Inegral LED
  • Surface Mount
  • Yes
  • White PC
  • VHB Tape or Screw
  • 9mm
  • IP66
  • See options
  • 35mm
  • Polycarbonate
  • 1 Module
  • 12V DC
  • 0.384W
  • 9.6mm
View Details

QUANTUM-DOT - 12VDC Quantum DOT Mini LED Sign Module ** NEW **

  • 170 Degrees
  • Non Replaceable LEDs
  • White
  • Very High Bond Tape
  • 8.3mm
  • IP67
  • Non Replaceable LEDs
  • 3200K or 6500K
  • 17mm
  • Polycarbonate
  • 1
  • 12VDC
  • 0.36W per Module
  • 11.4mm
View Details
