The new LINA range of linear recessed LED downlights have been designed for applications with shallow recessed ceilings and display furniture. Available in three different models with either 3, 5 or 6 high power LEDs in a choice of finishes and colour temperatures.
LINA is a dimmable lighting solution that can be supplied to dim on most dimming systems including triac, 0-10V, bluetooth, DALI amongst others.
The LEDs incorporated and housed within the LINA range are set back from the face of the fittings offering low glare high output illumination to most types of displays or interiors.
|

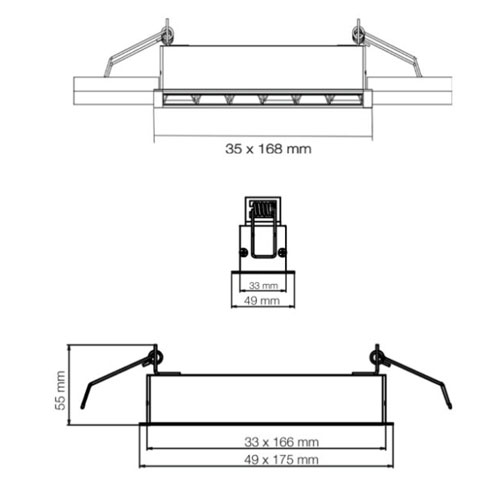

 Beam Angle - * OPTIONS AVAILABLE * Cut Out - 166mm x 33mm Dimmable - * OPTIONS AVAILABLE * Finish - * OPTIONS AVAILABLE * Fixing - Spring Clips Height - 55mm
 IP Rating - IP20 Lamp - Non User Replaceable LEDs LED Colour - * OPTIONS AVAILABLE * Length - 175mm Material - Aluminium/Polycarbonate QTY per pack - 1
 Recessed Depth - 55mm Voltage - 220-240VAC Wattage - 13W - 1014lm Weight - 45g Width - 49mm
|
Installation/Additional Images (click to enlarge) |
1. SELECT COLOUR TEMPERATURE:[click to expand]
The light produced by candles is very warm (basically yellow/orange) whereas daylight at noon is very cool. The colour or warmth of white light is ranked on a scale, the Kelvin scale, the warmer the colour the lower the colour temperature. Candles being around 2000 degrees Kelvin (K) while daylight typically 5500 – 6500K, please select your choice of colour temperature from the list below.
* COLOURS SHOWN ARE REPRESENTATIVE ONLY *
2. SELECT BEAM ANGLE REQUIRED:[click to expand]
When selecting beam angle, it’s important to note how many different fixtures you have to work with, as well as the distance between these light sources. Think about whether you want overlapping beams to create general lighting and ambience, or whether you’d prefer isolated pockets of light. This is especially important if you are working with overhead recessed lighting.
3. SELECT FINISH:[click to expand]
To make your product specification please make a selection from the component list provided:
COLOURS SHOWN ARE EXAMPLES ONLY AND MAY NOT BE AN EXACT MATCH FOR FINISHED PRODUCTS. TO VIEW RAL COLOUR CHART CLICK HERE
* COLOURS SHOWN ARE REPRESENTATIVE ONLY *
4. SELECT LED DRIVER / DIMMING OPTION:[click to expand]
Select from the Plug & Play options below, if your requirement is not shown in the list please add a note to your quote request or contact one of our sales team on 0044 (0) 161 207 3355 or email sales@display-lighting.com
Casambi Smartphone App required for Bluetooth control (available on IOS & Android)
|
