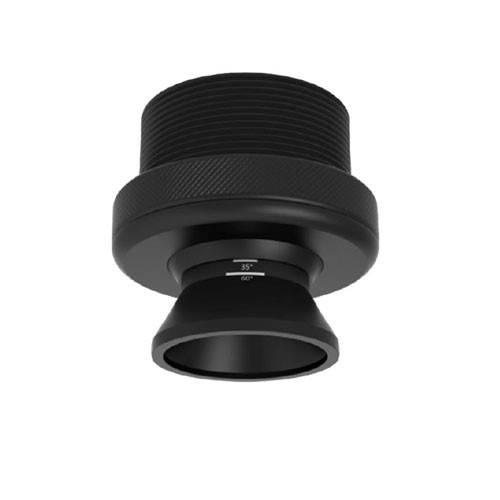

MINO3 1.5W 500mA CRI90> 10-40D Zoom Downlight with Antiglare Louvre (3000K) Black

View technical specifications MINO3 1.5W 500mA CRI90> 10-40D Zoom Downlight with Antiglare Louvre (3000K) Black - DOWNLOAD (231 KB)

View technical specifications MINO3 1.5W 500mA CRI90> 10-40D Zoom Downlight with Antiglare Louvre (3000K) Black - DOWNLOAD (263 KB)

Description
Key Features:
  • Outstanding design in black finish

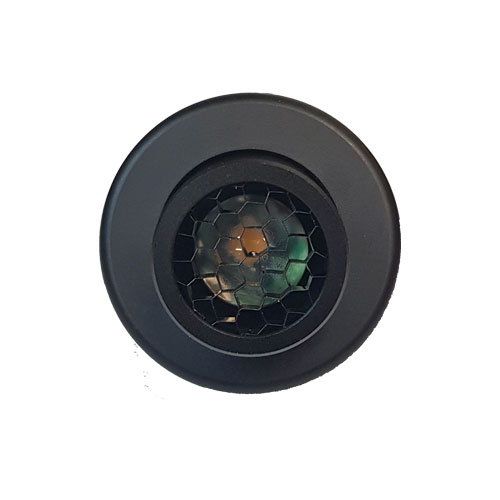

  • Anti-glare design,high visual comfort
  • High quality light output,Ra (R9) typ.: 93(50)

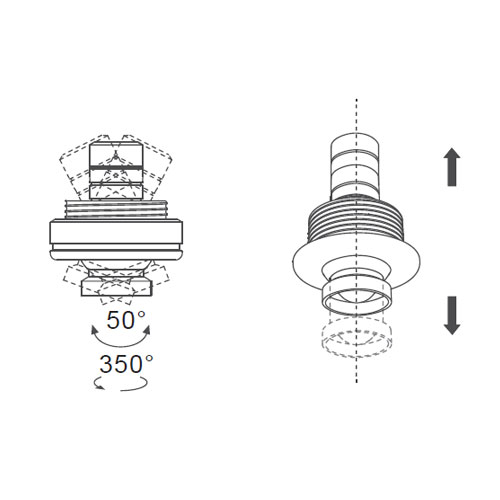

  • High flexibility in 350° rotatable and 50° tiltable
  • Beam angle adjustable, 10-40°
  • Plug and play system for quick installation
  • Lifetime: 50,000hrs (L80, B20, Ta=25℃, 12hours/Day).
  • Dimmable.
Key Specifications:
  • Input current: 500mA.
  • Luminaire input power: 1.5W.
  • Luminous Flux: 80lm @940.
  • Luminaire efficacy: 53lm/W @940.
  • Ra (R9) typ.: 93(50)
  • Chromaticity tolerance (initial MacAdam): 3 SDCM.
  • CCT: 3000K
  • Beam angle: 10-50°
  • Ta: -20~35°C.
  • N.W. : 72 g.
  • Housing: Machining aluminum oxidized.
  • Lens: Injection plastic.
  • Type of light source: directional light source

Specification

  • Adjustment - 25 Degrees
  • Beam Angle - 10 - 40 Degrees

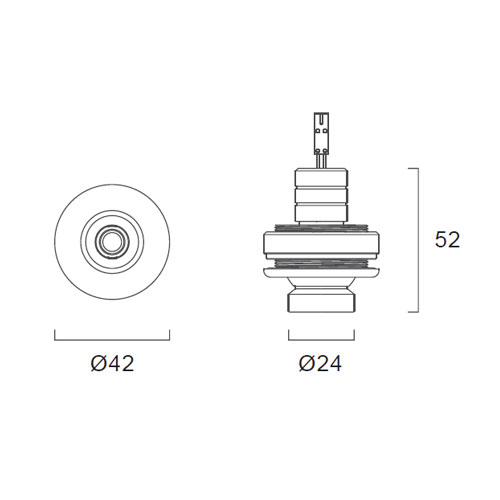

  • Cut Out - 35mm
  • Diameter - 42mm
  • Dimmable - 1-10V, TRIAC, DALI, Bluetooth, DMX
  • Finish - Black
  • Height - 52mm - 61mm
  • IP Rating - IP20
  • Lamp - Integral LED (non replaceable)
  • LED Colour - 3000K CRI95
  • Material - Aluminium
  • QTY per pack - 1
  • Recessed Depth - 35mm
  • Rotation - 350 Degrees
  • Voltage - 500mA Constant Current
  • Wattage - 1.5W
  • Weight - 72g

Installation/Additional Images (click to enlarge)

1. NUMBER OF LUMINAIRES REQUIRED PER SET * I.E. WIRED TO ONE POWER SUPPLY *

[click to expand]

Please select how many fittings you would like to operate per set (from a single power supply) with Plug & Play Connections. If your requirement is not shown in the list please add a note to your quote request or contact one of our sales team on 0044 (0) 161 207 3355 or email sales@display-lighting.com

SET/S OF 1 JB1-4A - Series Connections
SET/S OF 10 PSU-10S - Series Connections
SET/S OF 2 JB1-4A - Series Connections
SET/S OF 3 JB1-4A - Series Connections
SET/S OF 4 JB1-4A - Series Connections
SET/S OF 5 JB1-4A (x2) - Series Connections
SET/S OF 6 JB1-4A (x2) - Series Connections
SET/S OF 7 JB1-4A (x2) - Series Connections
SET/S OF 8 JB1-4A (x2) - Series Connections
SET/S OF 9 PSU-10S - Series Connections
continue

2. SELECT LED DRIVER / DIMMING OPTION:

[click to expand]

Select from the Plug & Play options below, if your requirement is not shown in the list please add a note to your quote request or contact one of our sales team on 0044 (0) 161 207 3355 or email sales@display-lighting.com

Casambi Smartphone App required for Bluetooth control (available on IOS & Android)

P&P/BT Plug & Play | Bluetooth Controllable Driver (no mains lead)
P&P/DA Plug & Play | 1-10V Dimmable Driver (no mains lead)
P&P/DAP Plug & Play | 1-10V Dimmable Driver with Manual Pot Dimmer, 2m Mains Lead & UK Plug
P&P/DD Plug & Play | DALI Dimmable Driver (no mains lead)
P&P/DMX Plug & Play | LED Driver & DMX512 Decoder with 2m Mains Lead & UK Plug
P&P/DT Plug & Play | TRIAC (Mains) Dimmable Driver (no mains lead)
P&P/F4-CC Plug & Play | LED Driver, Constant Current Receiver & Remote Control with Mains Lead & UK Plug
P&P/OO Plug & Play | Standard On/Off LED Driver (no mains lead)
continue
