PYRALED C12-TW 22W 3212lm - Tuneable White
PYRALED C12-TW 22W 3212lm - Tuneable White - DOWNLOAD (17 MB)
Description |
-

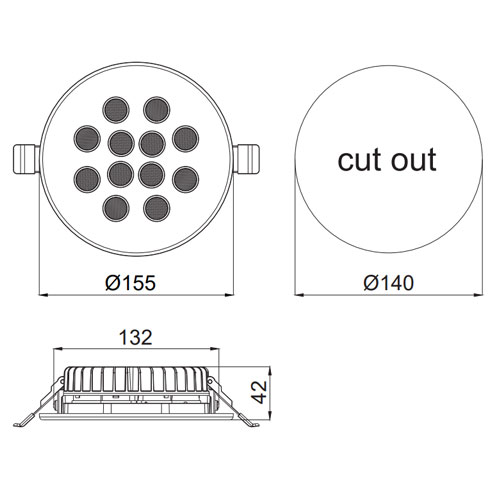

Dimensions: Dia 155mm x H 42mm
-
Cutout: Dia 140mm
-
LED: CREE
-
Warranty: 5 years
-
Total Power of Luminaire (watt): 22
-
Luminous Flux of Luminaire/Lumen (lm): 3212lm
-
Luminous Efficacy (lm/watt): 146
-
Color Rendering Index (CRI): 80>
|
Specification |
 Beam Angle - * OPTIONS AVAILABLE * Cut Out - 140mm Diameter - 155mm Dimmable - Yes Finish - * OPTIONS AVAILABLE *
 Fixing - Recessed Height - 42mm IP Rating - IP20 Lamp - Integrated Non User Replaceable LEDs LED Colour - 2700K - 6500K Tuneable White
 Material - Aluminium QTY per pack - 1 Recessed Depth - 62mm Voltage - 220-240VAC Wattage - 22W
|
Installation/Additional Images (click to enlarge) |
|
1. SELECT BEAM ANGLE REQUIRED:[click to expand]
When selecting beam angle, it’s important to note how many different fixtures you have to work with, as well as the distance between these light sources. Think about whether you want overlapping beams to create general lighting and ambience, or whether you’d prefer isolated pockets of light. This is especially important if you are working with overhead recessed lighting.
2. SELECT FINISH:[click to expand]
To make your product specification please make a selection from the component list provided:
COLOURS SHOWN ARE EXAMPLES ONLY AND MAY NOT BE AN EXACT MATCH FOR FINISHED PRODUCTS. TO VIEW RAL COLOUR CHART CLICK HERE
* COLOURS SHOWN ARE REPRESENTATIVE ONLY *
3. SELECT LED DRIVER / DIMMING OPTION:[click to expand]
Select from the Plug & Play options below, if your requirement is not shown in the list please add a note to your quote request or contact one of our sales team on 0044 (0) 161 207 3355 or email sales@display-lighting.com
Casambi Smartphone App required for Bluetooth control (available on IOS & Android)
|
