PYRALED C28/LG Low Glare 50W 7008lm - Static White
PYRALED C28/LG Low Glare 50W 7008lm - Static White - DOWNLOAD (17 MB)
Description |
-

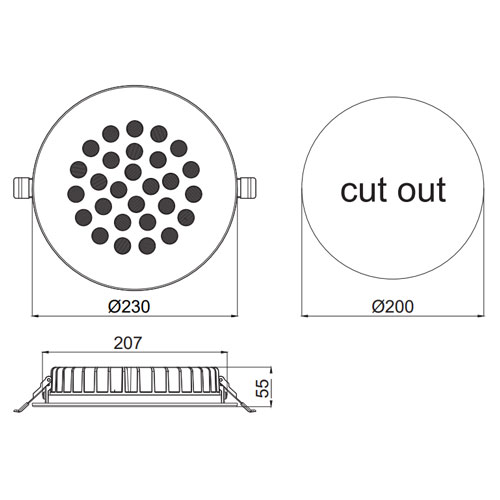

Dimensions: Dia 230mm x H55mm
-
Cutout: Dia 200mm
-
LED: CREE
-
Warranty: 5 years
-
Total Power of Luminaire (watt): 50
-
Luminous Flux of Luminaire/Lumen (lm): 7008
-
Luminous Efficacy (lm/watt): 140
-
Color Rendering Index (CRI): 80>
|
Specification |
 Beam Angle - * OPTIONS AVAILABLE * Cut Out - 200mm Diameter - 230mm Dimmable - Yes Finish - * OPTIONS AVAILABLE *
 Fixing - Recessed Height - 55mm IP Rating - IP20 Lamp - Integrated Non User Replaceable LEDs LED Colour - * OPTIONS AVAILABLE *
 Material - Aluminium QTY per pack - 1 Recessed Depth - 75mm Voltage - 220-240VAC Wattage - 50W
|
Installation/Additional Images (click to enlarge) |
|
1. SELECT COLOUR TEMPERATURE (CCT):[click to expand]
The light produced by candles is very warm (basically yellow/orange) whereas daylight at noon is very cool. The colour or warmth of white light is ranked on a scale, the Kelvin scale, the warmer the colour the lower the colour temperature. Candles being around 2000 degrees Kelvin (K) while daylight typically 5500 – 6500K, please select your choice of colour temperature from the list below.
* COLOURS SHOWN ARE REPRESENTATIVE ONLY *
2. SELECT BEAM ANGLE REQUIRED:[click to expand]
When selecting beam angle, it’s important to note how many different fixtures you have to work with, as well as the distance between these light sources. Think about whether you want overlapping beams to create general lighting and ambience, or whether you’d prefer isolated pockets of light. This is especially important if you are working with overhead recessed lighting.
3. SELECT FINISH:[click to expand]
To make your product specification please make a selection from the component list provided:
COLOURS SHOWN ARE EXAMPLES ONLY AND MAY NOT BE AN EXACT MATCH FOR FINISHED PRODUCTS. TO VIEW RAL COLOUR CHART CLICK HERE
* COLOURS SHOWN ARE REPRESENTATIVE ONLY *
4. SELECT LED DRIVER / DIMMING OPTION:[click to expand]
Select from the Plug & Play options below, if your requirement is not shown in the list please add a note to your quote request or contact one of our sales team on 0044 (0) 161 207 3355 or email sales@display-lighting.com
Casambi Smartphone App required for Bluetooth control (available on IOS & Android)
|
