Spectrum 12VDC Surface Mount Display Spotlight

Description

WHAT'S INCLUDED?

  • 1 x DL124 12V MR16 Surface Mount Spotlight with 1500mm Lead.
  • 1 x MR16 12V 5W LED Lamp.
  • 1 x 12V Plug In Mains (220-240VAC) Power Supply.

Projected Distance = 300mm

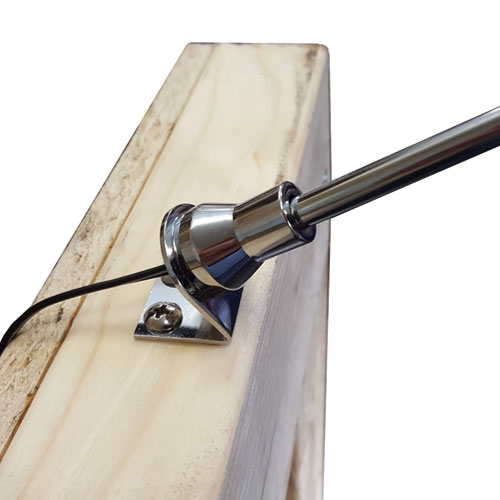

DL124 is an MR16 12V spotlight designed for surface mounting to the top of shelving and exhibition stands for illuminating exhibition displays.

DL124 will accept all types of MR16 G5.3 LED Lamps that are available in 3000K, 4000K and 6500K.

Specification

  • Adjustment - 90 Degrees
  • Beam Angle - See Lamp Data
  • Cap/Lampholder - GU5.3
  • Cut Out - Surface Mount
  • Diameter - 25mm
  • Dimmable - No
  • Finish - * OPTIONS AVAILABLE *
  • Fixing - Screw Fix (Screws not Supplied)
  • IP Rating - IP20
  • Lamp - MR16
  • LED Colour - * OPTIONS AVAILABLE *
  • Length - 300mm
  • Material - Brass/Steel
  • Maximum Load - 10W
  • QTY per pack - 1
  • Rotation - 350 Degrees
  • Voltage - 12VDC
  • Wattage - See Lamp Data

Installation/Additional Images (click to enlarge)

1. SELECT FINISH:

[click to expand]

To make your product specification please make a selection from the component list provided:

COLOURS SHOWN ARE EXAMPLES ONLY AND MAY NOT BE AN EXACT MATCH FOR FINISHED PRODUCTS. TO VIEW RAL COLOUR CHART CLICK HERE

* COLOURS SHOWN ARE REPRESENTATIVE ONLY *

01 White (RAL9010)
02 Black (RAL9005)
03 Polished Chrome
05 Brushed Chrome
continue

2. LED LAMP OPTIONS:

[click to expand]

The light produced by candles is very warm (basically yellow/orange) whereas daylight at noon is very cool. The colour or warmth of white light is ranked on a scale, the Kelvin scale, the warmer the colour the lower the colour temperature. Candles being around 2000 degrees Kelvin (K) while daylight typically 5500 – 6500K, please select your choice of colour temperature from the list below:

* COLOURS SHOWN ARE REPRESENTATIVE ONLY *

DL29230 MR16 GU5.3 4.6W 12V DC 450lm Glass LED COB Lamp (3000K)
DL29231 MR16 GU5.3 4.6W 12V DC 480lm Glass LED COB Lamp (4000K)
DL29232 MR16 GU5.3 4.6W 12V DC 480lm Glass LED COB Lamp (6500K)
NO LAMP LED Lamp/s not required
continue

3. NUMBER OF LUMINAIRES REQUIRED PER SET * I.E. WIRED TO ONE POWER SUPPLY *

[click to expand]

Please select how many fittings you would like to operate per set (from a single power supply) with Plug & Play Connections. If your requirement is not shown in the list please add a note to your quote request or contact one of our sales team on 0044 (0) 161 207 3355 or email sales@display-lighting.com

SET/S OF 1 2.1mmDC Barrel Connectors (12V 1A Power Supply)
SET/S OF 2 2.1mmDC Barrel Connectors (12V 1.5A Power Supply)
SET/S OF 3 2.1mmDC Barrel Connectors (12V 2A Power Supply)
SET/S OF 4 2.1mmDC Barrel Connectors (12V 3A Power Supply)
continue

4. 2.1mm DC EXTENSION LEADS:

[click to expand]

2.1mm DC Extension Lead/s connect between the spotlight/s and power supply (or battery) and are available in lengths of 1.5m, 3m, 5m and 10m.

1.5M 1.5m 2.1mm DC Plug to Socket Extension Lead (2A Max)
3M 3m 2.1mm DC Plug to Socket Extension Lead (2A Max)
5M 5m 2.1mm DC Plug to Socket Extension Lead (2A Max)
NOT REQUIRED EXTENSION LEADS NOT REQUIRED
continue
