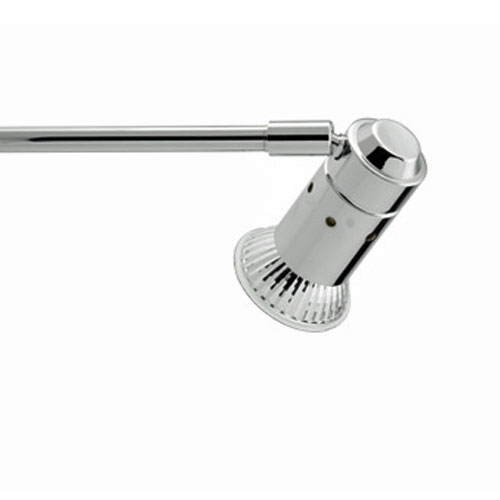

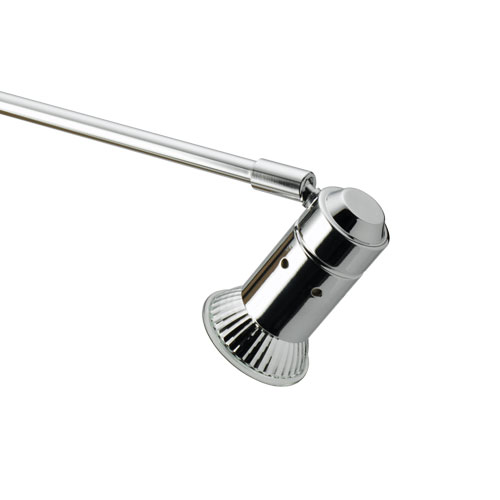

Spectrum MV GU10 Clamp Spotlight

View technical specifications Spectrum MV GU10 Clamp Spotlight - DOWNLOAD (7 MB)

Description

WHAT'S INCLUDED?

  • S134 GU10 Clamp Spotlight with 2m Mains Lead & UK Plug.
  • * Optional * GU10 LED Glass COB Lamp.

NOTES:

  • Overall projected length = 350mm (longer lengths available to special order).
  • White spotlight is manufactured and supplied with white clamp.
  • To fit panel thicknesses between 5mm - 50mm.
  • Display Lighting can also manufacture and supply S134 Spotlights with our GST18 mains voltage daisy chain system so that they can be powered from one end and linked inline (see accessories below).

Specification

  • Adjustment - 90 Degrees
  • Cap/Lampholder - GZ10
  • Diameter - 33mm
  • Dimmable - See Lamp Data
  • Finish - * OPTIONS AVAILABLE *

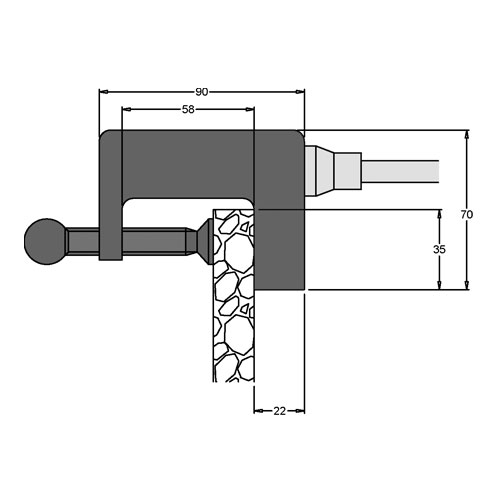

  • Fixing - Clamp 5mm to 50mm
  • IP Rating - IP20
  • Lamp - PAR16
  • LED Colour - * OPTIONS AVAILABLE *
  • Length - 350mm
  • Material - Brass/Polycarbonate
  • QTY per pack - 1
  • Rotation - 350 Degrees
  • Voltage - 220-240VAC
  • Wattage - 10W Max'

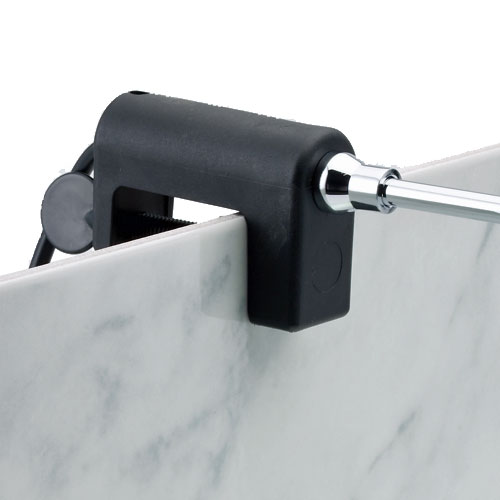

Installation/Additional Images (click to enlarge)

1. SELECT FINISH:

[click to expand]

To make your product specification please make a selection from the component list provided:

COLOURS SHOWN ARE EXAMPLES ONLY AND MAY NOT BE AN EXACT MATCH FOR FINISHED PRODUCTS. TO VIEW RAL COLOUR CHART CLICK HERE

* COLOURS SHOWN ARE REPRESENTATIVE ONLY *

01 White (RAL9016 Traffic White)
02 Black (RAL9005 Jet Black)
03 Polished Chrome
05 Brushed Chrome
RAL RAL Reference PLEASE SPECIFY HERE 👉 Select:
continue

2. LED LAMP OPTIONS:

[click to expand]

The light produced by candles is very warm (basically yellow/orange) whereas daylight at noon is very cool. The colour or warmth of white light is ranked on a scale, the Kelvin scale, the warmer the colour the lower the colour temperature. Candles being around 2000 degrees Kelvin (K) while daylight typically 5500 – 6500K, please select your choice of colour temperature from the list below:

* COLOURS SHOWN ARE REPRESENTATIVE ONLY *

DL29113 GU10 5W 450lm CRI80> LED Lamp (2700K)
DL29114 GU10 5W 450lm CRI80> LED Lamp (3000K)
DL29115 GU10 5W 475lm CRI80> LED Lamp (4000K)
DL29116 GU10 5W 475lm CRI80> LED Lamp (6500K)
DL29131 GU10 5W 450lm CRI90> LED Lamp (2700K) Dimmable
DL29132 GU10 5W 450lm CRI90> LED Lamp (3000K) Dimmable
DL29134 GU10 5W 475lm CRI90> LED Lamp (4000K) Dimmable
DL29136 GU10 5W 475lm CRI80> LED Lamp (6500K) Dimmable
NO LAMP LED Lamp/s not required
continue

Components
