Single colour LED Flex Sheet consists of a matrix of 105 LEDs, cuttable in 1 LED increments. Available in a range of colour temperatures, as well as red, green, or blue, the single colour flex sheet is the most economical sheet for backlighting projects where tuneable white or RGBW lighting is not required.
The single colour sheet is available in 2 configurations, a standard 11W version for backlighting thinner materials or areas with less ambient light, or a high output 32W version specially designed for backlighting thick materials or areas with high levels of ambient light.
-
3000K
-
Ultra-thin flexible LED sheet
-
3M adhesive tape for bonding to flat or curved surfaces
-
Cuttable matrix at single LED point
-
High efficacy >120 lm/W
-
High colour consistency (MacAdam 3)
-
Constant Voltage 24VDC
-
CRI > 80
-
120° beam angle
-
Dimmable
-
Power input via onboard connectors or solder pads
-
L70 30,000 hours

|
 Beam Angle - 120 Degrees Dimmable - Fully Dimmable Finish - White PCB Fixing - VHB Adhesive Tape

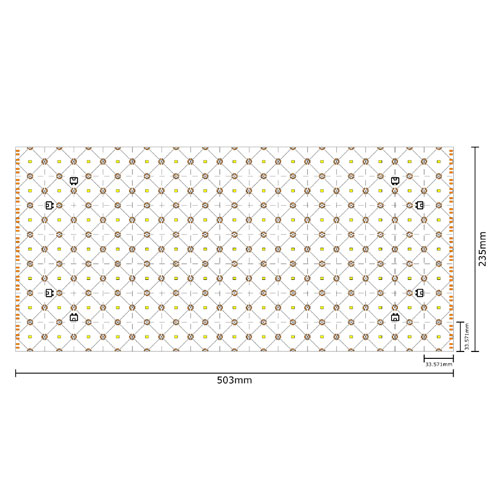

 Height - 235mm IP Rating - IP20 Lamp - Integrated Non Replaceable LEDs LED Colour - 3000K
 QTY per pack - 1 Voltage - 24VDC Wattage - 32W Width - 503mm
|
