The team at Display Lighting designed SRLED Linear Luminiares as a budget lighting solution for illuminating displays. Display Lighting can supply this bespoke product in any powder coated or anodised finish shown in the options below.
Manufactured & supplied with any of the standard LEDs shown below:
4.8W/m (394lm-480lm/m):
9.6W/m (787lm-883lm/m):
12W/m (1080lm-1200lm/m):
19.2W/m (1340-1550lm/m):
9.6W/m (360lm-410lm/m):
-
Tuneable White (2700K-6500K)
19.2W/m (720lm-820lm/m):
-
Tuneable White (2700K-6500K)
14.4W/m (506lm/m):
28.8W/m (850lm/m):
17.8W/m (902lm/m):
24W/m (1440lm/m):

|

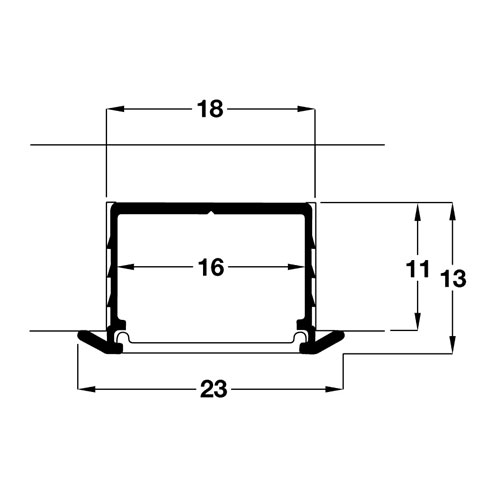

 Beam Angle - 100 Degrees Cut Out - 18mm x 11mm Dimmable - ** OPTIONS AVAILABLE ** Finish - ** OPTIONS AVAILABLE ** Fixing - Push Fit Height - 13mm
 IP Rating - IP20 Lamp - Integrated non user replaceable LEDs LED Colour - ** OPTIONS AVAILABLE ** Length - Up to 2500mm Material - Aluminium/Polycarbonate QTY per pack - 1
 Recessed Depth - 11mm Voltage - 24V DC Wattage - ** OPTIONS AVAILABLE ** Width - 23mm
|
Installation/Additional Images (click to enlarge) |
1. ENTER OVERALL PROFILE LENGTH:[click to expand]
To make your product specification please make a selection from the component list below:
2. SELECT DIFFUSER:[click to expand]
To make your product specification please make a selection from the component list provided:
3. LED FLEX COLOUR TEMPERATURE (CCT):[click to expand]
The light produced by candles is very warm (basically yellow/orange) whereas daylight at noon is very cool. The colour or warmth of white light is ranked on a scale, the Kelvin scale, the warmer the colour the lower the colour temperature. Candles being around 2000 degrees Kelvin (K) while daylight typically 5500 – 6500K, please select your choice of colour temperature from the list below:
NOTE: The pictures shown are representative only and may not be a true likeness.
4. SELECT FINISH:[click to expand]
To make your product specification please make a selection from the component list provided:
COLOURS SHOWN ARE EXAMPLES ONLY AND MAY NOT BE AN EXACT MATCH FOR FINISHED PRODUCTS. TO VIEW RAL COLOUR CHART CLICK HERE
* COLOURS SHOWN ARE REPRESENTATIVE ONLY *
5. SELECT LED DRIVER / DIMMING OPTION:[click to expand]
Select from the Plug & Play options below, if your requirement is not shown in the list please add a note to your quote request or contact one of our sales team on 0044 (0) 161 207 3355 or email sales@display-lighting.com
Casambi Smartphone App required for Bluetooth control (available on IOS & Android)
|
