24VDC Undershelf Luminaire (CRI90>)

View technical specifications 24VDC Undershelf Luminaire (CRI90>) - DOWNLOAD (783 KB)

Description
  • Manufactured to exact length.
  • Constant Voltage Operation.
  • Slimline 20mm Depth.
  • High Output.
  • Manufactured with a large range of static white, tuneable white & RGB LEDs.

Manufactured & supplied with any of the LEDs shown below:

2 x 4.8W/m (2 x 384lm-490lm/m):

  • 2200K
  • 2700K
  • 3000K
  • 4000K
  • 6000K

2 x 9.6W/m (2 x 768lm-970lm/m):

  • 2700K
  • 3000K
  • 4000K

2 x 14.4W/m (2 x 1125lm-1300lm/m):

  • 2200K
  • 2700K
  • 3000K
  • 4000K
  • 6000K

2 x 19.2W/m (2 x 1728-1940lm/m):

  • 3000K
  • 4000K

2 x 19.2W/m (2 x 700lm-900lm/m):

  • Tuneable White (2700K-6500K)

2 x 14.4W/m:

  • RGB

Specification

  • Beam Angle - 90 Degrees
  • Dimmable - ** OPTIONS AVAILABLE **
  • Finish - ** OPTIONS AVAILABLE **
  • Fixing - Screw Fix
  • Height - 20mm
  • IP Rating - IP20
  • Lamp - Integral high density LEDs
  • LED Colour - ** OPTIONS AVAILABLE **
  • Length - <2030mm
  • Material - Aluminium/Acrylic
  • QTY per pack - 1
  • Voltage - 24V DC
  • Wattage - ** OPTIONS AVAILABLE **
  • Width - 60mm

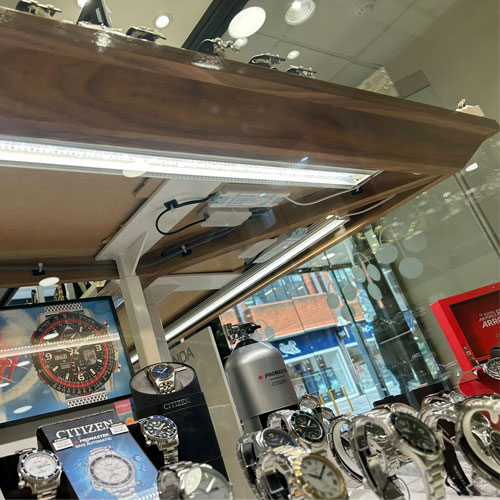

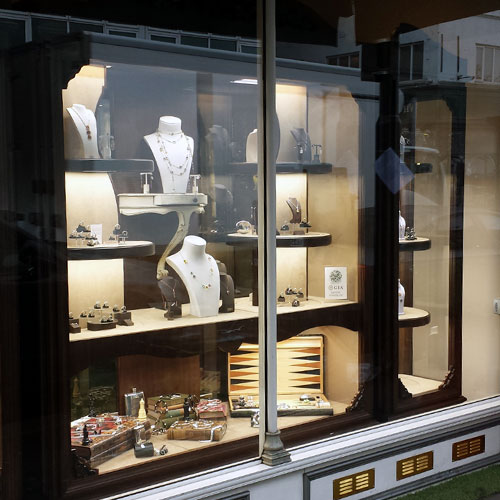

Installation/Additional Images (click to enlarge)

1. ENTER OVERALL PROFILE LENGTH:

[click to expand]

To make your product specification please make a selection from the component list below:

LENGTH USLED/USPLED OVERALL LENGTH (mm) 👉 Select:
continue

2. SELECT DIFFUSER:

[click to expand]

To make your product specification please make a selection from the component list provided:

C Clear Diffuser (Full Brightness)
O Opal Diffuser (Reduced Dots) 20% Opacity
continue

3. LED FLEX COLOUR TEMPERATURE (CCT):

[click to expand]

The light produced by candles is very warm (basically yellow/orange) whereas daylight at noon is very cool. The colour or warmth of white light is ranked on a scale, the Kelvin scale, the warmer the colour the lower the colour temperature. Candles being around 2000 degrees Kelvin (K) while daylight typically 5500 – 6500K, please select your choice of colour temperature from the list below:

NOTE: The pictures shown are representative only and may not be a true likeness.

22/14.4 2200K (14.4W/m)
22/4.8 2200K (4.8W/m)
27/14.4 2700K (14.4W/m)
27/19.2 2700K (19.2W/m)
27/4.8 2700K (4.8W/m)
27/9.6 2700K (9.6W/m)
30/14.4 3000K (14.4W/m)
30/19.2 3000K (19.2W/m)
30/4.8 3000K (4.8W/m)
30/9.6 3000K (9.6W/m)
40/14.4 4000K (14.4W/m)
40/19.2 4000K (19.2W/m)
40/4.8 4000K (4.8W/m)
40/9.6 4000K (9.6W/m)
60/14.4 6000K (14.4W/m)
60/4.8 6000K (4.8W/m)
RGB/14.4 RGB (14.4W/m)
TW/19.2 Tuneable White (19.2W/m)
TW/9.6 Tuneable White (9.6W/m)
continue

4. SELECT FINISH:

[click to expand]

To make your product specification please make a selection from the component list provided:

COLOURS SHOWN ARE EXAMPLES ONLY AND MAY NOT BE AN EXACT MATCH FOR FINISHED PRODUCTS. TO VIEW RAL COLOUR CHART CLICK HERE

* COLOURS SHOWN ARE REPRESENTATIVE ONLY *

01 White (RAL9010)
02 Black (RAL9005)
RAL RAL Reference PLEASE SPECIFY HERE 👉 Select:
continue

5. SELECT LED DRIVER / DIMMING OPTION:

[click to expand]

Select from the Plug & Play options below, if your requirement is not shown in the list please add a note to your quote request or contact one of our sales team on 0044 (0) 161 207 3355 or email sales@display-lighting.com

Casambi Smartphone App required for Bluetooth control (available on IOS & Android)

P&P Plug & Play | Standard On/Off Driver with 2m Mains Lead & UK Plug
P&P/BT Plug & Play | Bluetooth Controllable Driver (no mains lead)
P&P/DA Plug & Play | 1-10V Dimmable Driver (no mains lead)
P&P/DAP Plug & Play | 1-10V Dimmable Driver with Manual Pot Dimmer, 2m Mains Lead & UK Plug
P&P/DD Plug & Play | DALI Dimmable Driver (no mains lead)
P&P/DT Plug & Play | TRIAC (Mains) Dimmable Driver (no mains lead)
P&P/OO Plug & Play | Standard On/Off LED Driver (no mains lead)
P&P/RGB Plug & Play | LED Driver with RGB Receiver & Remote Control with 2m Mains Lead & UK Plug (RGB LEDs ONLY)
P&P/RGBW Plug & Play | LED Driver with RGBW Receiver & Remote Control with 2m Mains Lead & UK Plug (RGBW LEDs ONLY)
P&P/TW Plug & Play | LED Driver with Constant Voltage Tuneable White Receiver & Handset with 2m Mains Lead & UK Plug (CCT LEDs ONLY)
X Driver or Dimmer not required (not recommended)
continue
