FEATURES:
-
High flexibility in beam angle from 10° to 40°.
-
High quality light output,Ra (R9) typ.: 93(50)
-
Ultra slim design for easy integration
-
Plug and play system for quick and easy installation
-
Lifetime: 50,000hrs (L80, B20, Ta=25℃, 12hours/Day).
-
Touch Dimming.

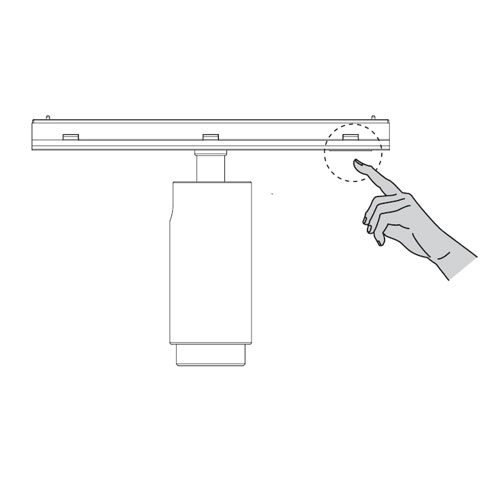

TOUCH DIMMING:
-
Short touch: dimming range 20% - 45% - 75% - 100%
-
Long touch: stepless dimming 20%-100%
SPECIFICATIONS:
-
Input voltage: 24V.
-
Luminaire input power: 3W
-
Luminous Flux: 90lm
-
Luminaire efficacy: 30lm/W
-
Ra (R9) typ.: 93(50)
-
Chromaticity tolerance (initial MacAdam): 3 SDCM.
-
CCT: 3000K
-
Beam angle: 10~40°
-
Ta: -20~35°C.
-
N.W. : 53g.
-
Housing: Extrusion aluminum/Machining aluminum oxidized.
-
Lens: Injection plastic.
-
Chromaticity tolerance (initial MacAdam): 3 SDCM (3000K,4000K)
-
Color coordinates (CIEx, CIEy): 3000K(0.4338, 0.4030),4000K(0.3818, 0.3797)
-
Measurement precision for x ,y +/- 0.005

|

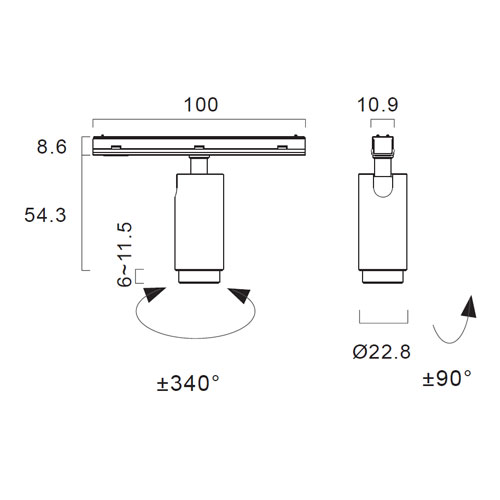

 Adjustment - 90 Degrees Beam Angle - 10 - 40 Degree Zoom Diameter - 22.8mm Dimmable - Touch Dimming Finish - Black Fixing - Track
 Height - 60mm - 65mm Zoom IP Rating - IP20 Lamp - Integrated Non User Replaceable LED LED Colour - 3000K Length - 100mm Material - Aluminium
 QTY per pack - 1 Rotation - 350 Degrees Voltage - 24VDC Wattage - 3W
|

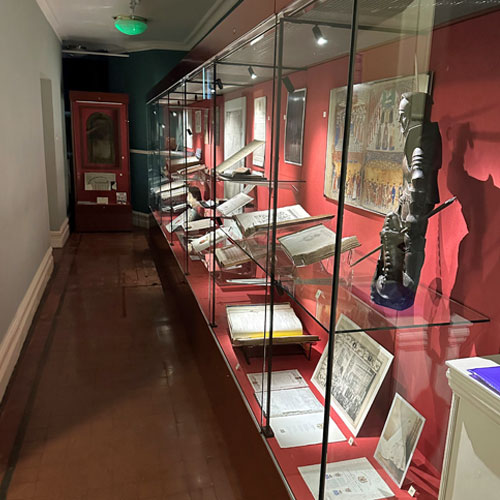

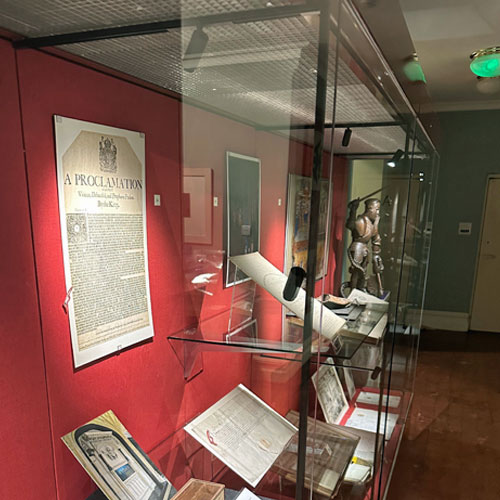

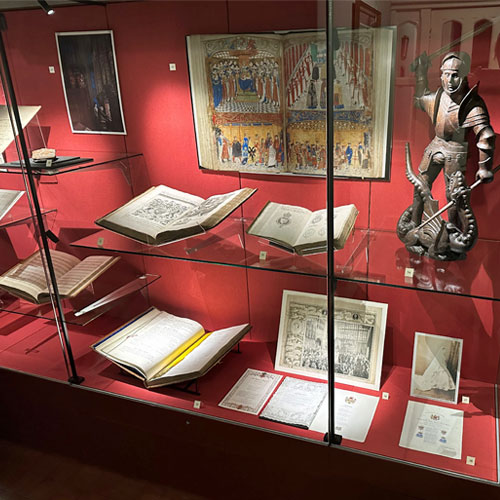

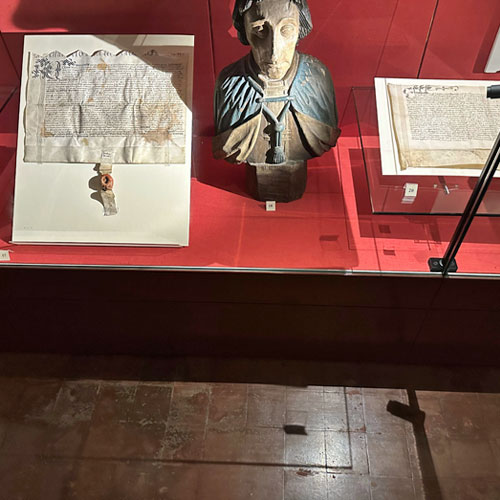

Installation/Additional Images (click to enlarge) |
