FEATURES:
-
High quality light output,Ra (R9) typ.: 93(50)
-
Plug and play system for quick and easy installation
-
Lifetime: 50,000hrs (L80, B20, Ta=25℃, 12hours/Day).
-
Touch Dimming.
-
3000K - 4000K - 5000K - 6500K
TOUCH DIMMING:
-
Short touch: 3000K - 4000K - 5000K - 6500K
-
Long touch stepless dimming: 20%-100%
SPECIFICATIONS:
-
Input voltage: 24V.
-
Luminaire input power: 4W
-
Luminous Flux: 250lm
-
Efficacy: 62lm/W
-
Ra (R9) typ.: 93 (50)
-
Chromaticity tolerance (initial MacAdam): 3 SDCM.
-
CCT: 3000K
-
Beam angle: 25 Degrees
-
Ta: -20~35°C
-
N.W. : 88g.
-
Housing: Aluminium Extrusion & Machined Aluminum.
-
Lens: Plastic Injection
-
Chromaticity tolerance (initial MacAdam): 3 SDCM
|

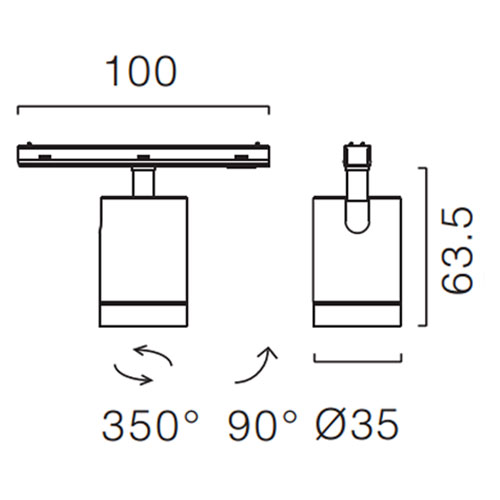

 Adjustment - 90 Degrees Beam Angle - 20 Degrees Diameter - 35mm Dimmable - Stepless Touch Dimming 20%-100% Finish - Black Fixing - Track
 Height - 63.50mm IP Rating - IP20 Lamp - Integrated Non User Replaceable LED LED Colour - 3000K-4000K-5000K-6500K 250lm Length - 100mm Material - Aluminium
 QTY per pack - 1 Rotation - 350 Degrees Voltage - 24VDC Wattage - 4W Weight - 88g
|
Installation/Additional Images (click to enlarge) |
